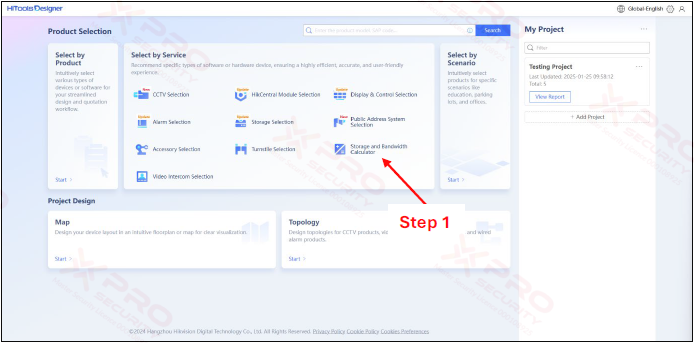

Step 1: Click on “Storage and Bandwidth Calculator”.

(Calculate Saving Time)

Find out how long your CCTV system can record with this tool.

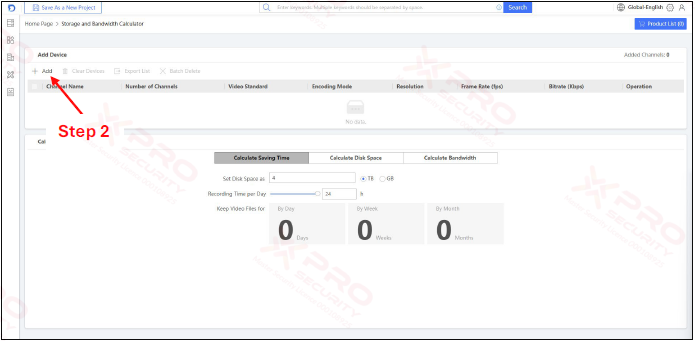

Step 2: Click on “Add”.

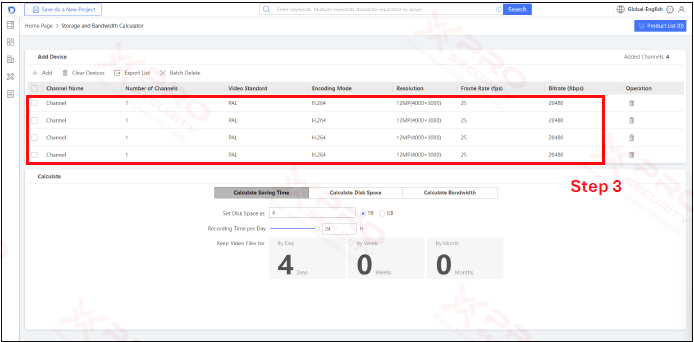

Step 3: Change the parameters of the camera according to the parameters of your camera.

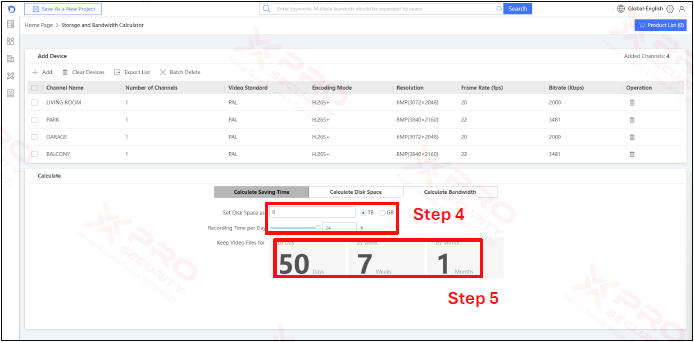

Step 4: Enter your storage size. Also enter how many hours your camera records per day.
Step 5: The result of the calculation will be on the display here.

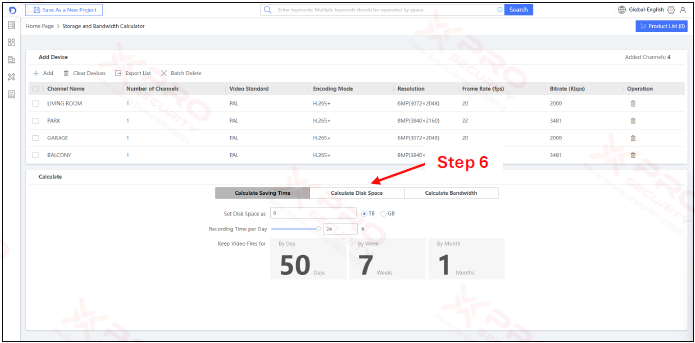

Step 6: Click on “Calculate Disk Space”.

(Calculate Disk Space)

This tool determines the amount of disk space that is needed to record for the specified number of days.

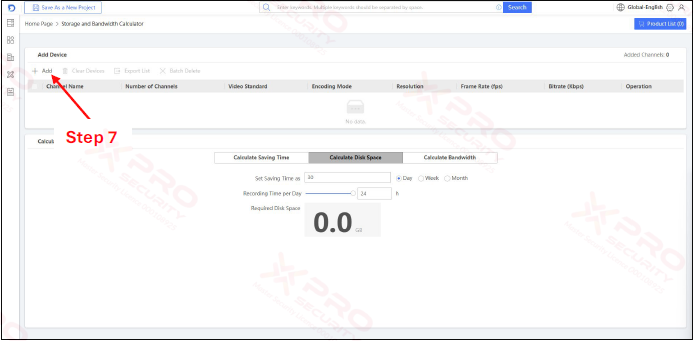

Step 7: Click on “Add”.

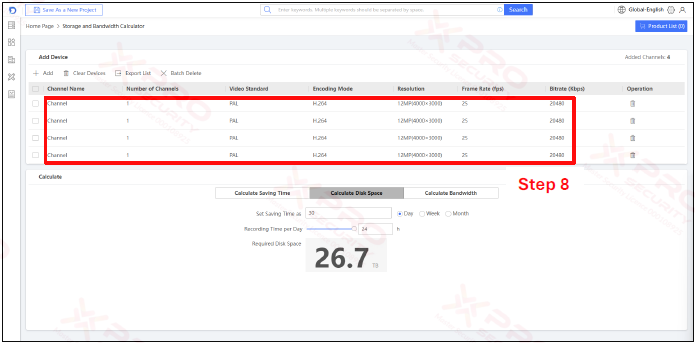

Step 8: Change the parameters of the camera according to the parameters of your camera.

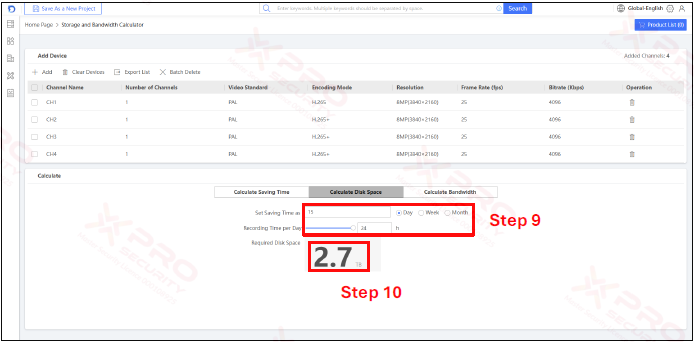

Step 9: Enter the number of days to record and the number of hours to record per day.
Step 10: The result of the calculation will be on the display here.

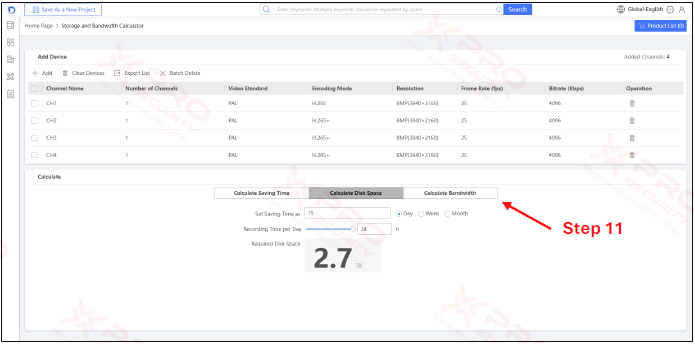

Step 11: Click on “Calculate Bandwidth”.

(Calculate Bandwidth)

Find out how much bandwidth is needed to install a CCTV system with this tool.

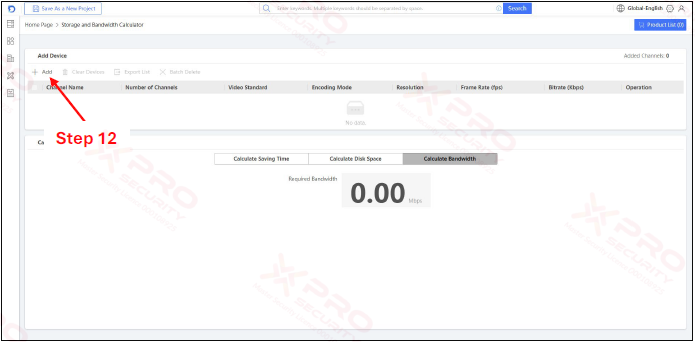

Step 12: Click on “Add”.

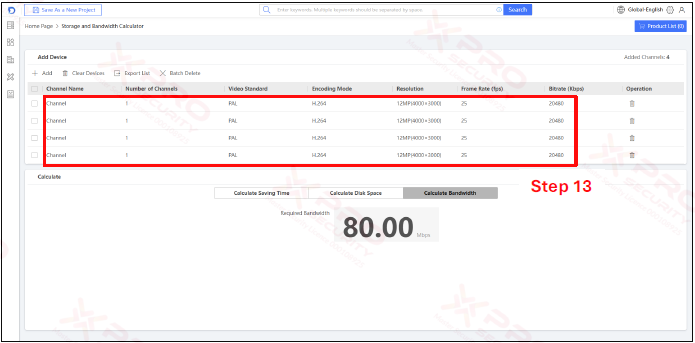

Step 13: Change the parameters of the camera according to the parameters of your camera.

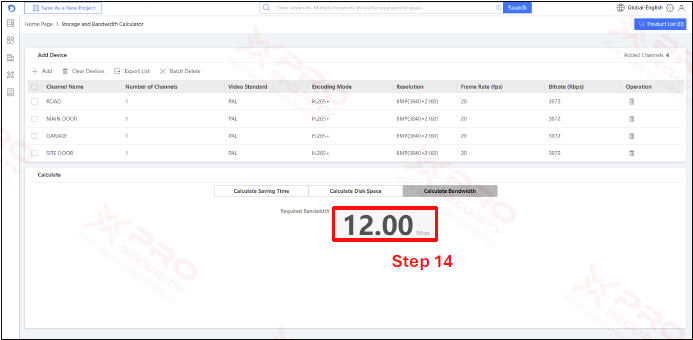

Step 14:  The result of the calculation will be on the display here.
